Evaporative Emission Canister Purge Valve - 3.5L GTDI: Removal
WARNING:
Before beginning any service procedure in this service information, refer to health and safety warnings in SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Disconnect the battery ground cable. Refer to REFER to Battery, Mounting and Cables .

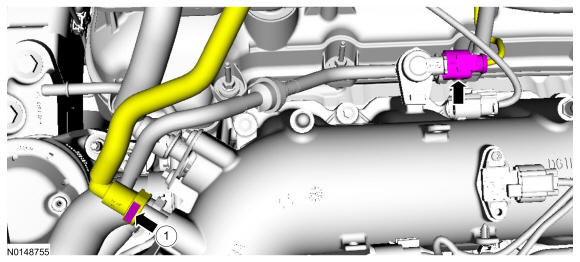

- 2.
- 1.
Disconnect the Type 1 quick connect coupling. Refer to REFER to Fuel System - General Information .
- 1.

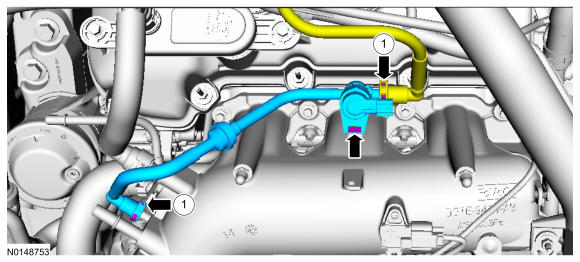

- 3.
- 1.
Disconnect the Type 1 quick connect couplings. Refer to REFER to Fuel System - General Information .
- 1.
