Catalytic Converter - LH, 3.5L GTDI: Removal
NOTE:
Always install new fasteners and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to Jacking and Lifting .
- 2.
Remove the LH HO2S. For additional information, REFER to Electronic Engine Controls - 2.0L GTDI.
- 3.
Remove the LH exhaust flexible pipe. For additional information, refer to Exhaust Flexible Pipe - LH, 3.5L GTDI .
- 6.

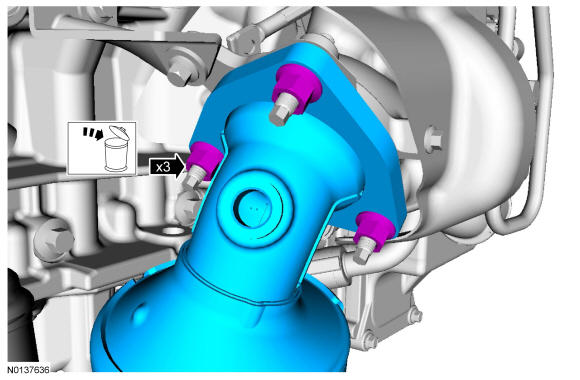

Remove the 3 LH catalytic converter-to-turbocharger nuts and the catalytic converter.- Discard the nuts and gasket.
