Catalytic Converter - RH, 3.5L GTDI: Removal
NOTE:
Always install new fasteners and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to Jacking and Lifting .
- 2.
Remove the RH front wheel and tire. For additional information, REFER to Wheels and Tires .
- 3.
Disconnect the RH HO2S electrical connector.- Detach the HO2S electrical connector retainer and wire from the bracket.
- 4.
Remove the RH exhaust flexible pipe. For additional information, refer to Exhaust Flexible Pipe - RH, 3.5L GTDI .
- 6.

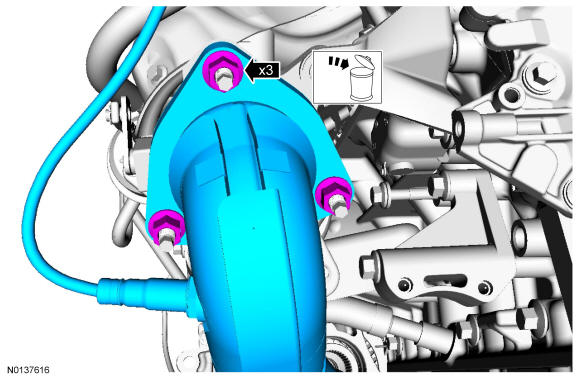

Remove the 3 RH catalytic converter-to-turbocharger nuts and the converter.- Discard the nuts and gasket.
