Catalytic Converter - RH, 3.5L GTDI: Installation
- 1.

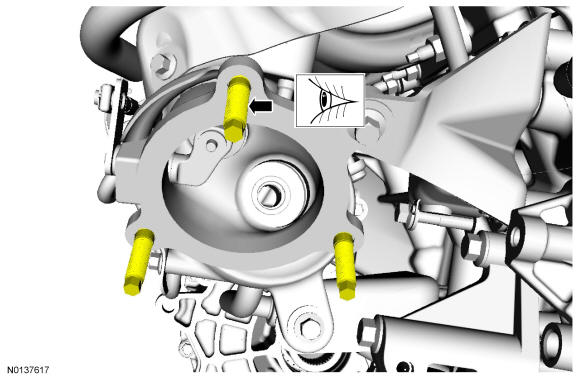

Inspect the RH turbocharger-to-catalytic converter studs for damage.- If damaged or if a stud comes out when removing the nut, replace the stud.
- Tighten to 25 Nm (18 lb-ft).
- 2.NOTE: Failure to tighten the RH catalytic converter manifold-to-turbocharger nuts to specification a second time will cause the RH catalytic converter manifold-to-turbocharger to develop an exhaust leak.NOTE: Prior to installation, inspect the HO2S and the CMS wiring harness for damage.

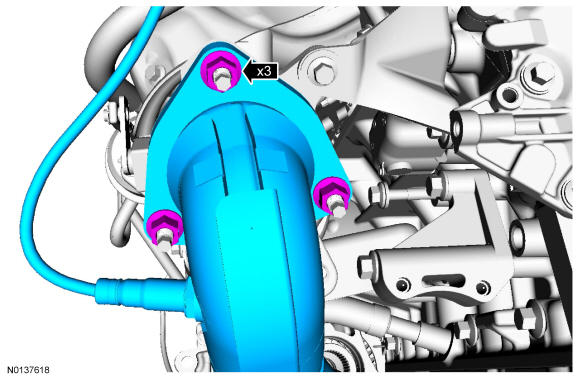

Using a new gasket and 3 new nuts, install the RH catalytic converter manifold to the turbocharger. Tighten the RH catalytic converter manifold in 2 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten to 40 Nm (30 lb-ft).
- 4.
Install the RH exhaust flexible pipe. For additional information, refer to Exhaust Flexible Pipe - RH, 3.5L GTDI .
- 5.

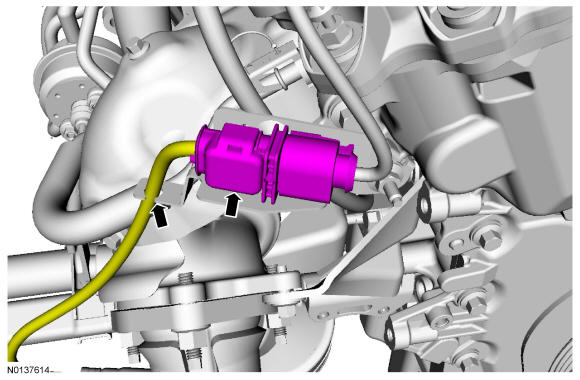

Connect the RH HO2S electrical connector.- Attach the HO2S electrical connector retainer and wire to the bracket.
- 6.
Install the RH front wheel and tire. For additional information, REFER to Wheels and Tires .
