Exhaust Y-Pipe - 3.5L Ti-VCT: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.

NOTE: Always install new nuts and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting , Lifting Points.

2.

If equipped, detach the 3 retainers and remove the splash shield.

GFD34445

Courtesy of FORD MOTOR COMPANY

3.

Loosen the Torca® clamp retainer.

GFD36780

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not damage or tear the isolator during removal.

Using soapy water, detach the exhaust Y-pipe isolator.

GFD36781

Courtesy of FORD MOTOR COMPANY

5.

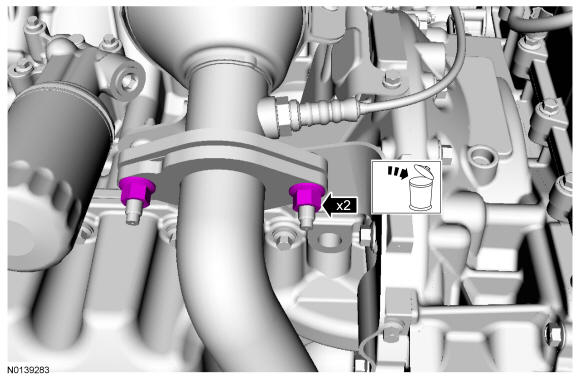

Remove and discard the 2 exhaust Y-pipe-to-Left Hand (LH) catalytic converter manifold nuts and gasket.

GFD36782

Courtesy of FORD MOTOR COMPANY

6.

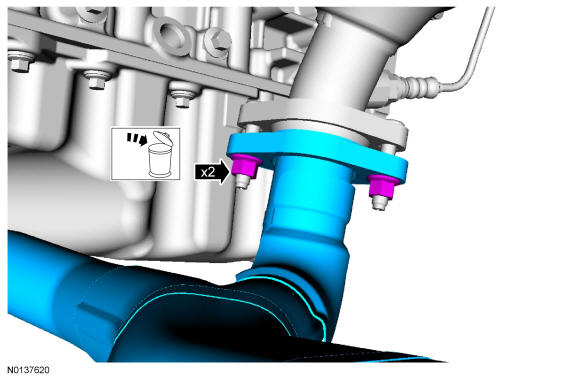

Remove and discard the 2 exhaust Y-pipe-to-Right Hand (RH) catalytic converter manifold nuts.
- 1.

  Remove the exhaust Y-pipe.

GFD36783

Courtesy of FORD MOTOR COMPANY
