Exhaust Y-Pipe - 3.5L Ti-VCT: Installation

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.

NOTE: Always install new nuts and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.

1.

Install the exhaust Y-pipe with new nuts and gasket and hand-tighten all fasteners.
- 1.

  Attach the exhaust Y-pipe isolator.

GFD36781

Courtesy of FORD MOTOR COMPANY

2.

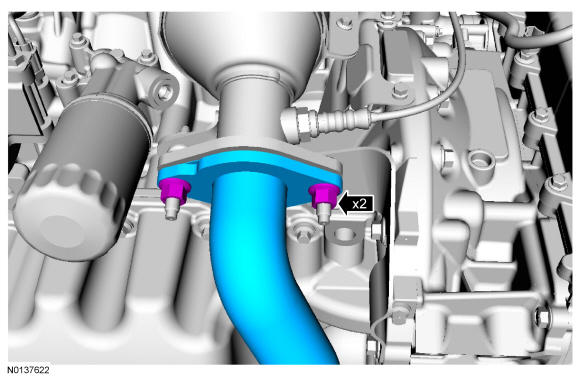

Evenly tighten the 2 new exhaust Y-pipe-to-Left Hand (LH) catalytic converter manifold nuts.
- 1.

  Tighten to 40 Nm (30 lb-ft).

GFD36784

Courtesy of FORD MOTOR COMPANY

3.

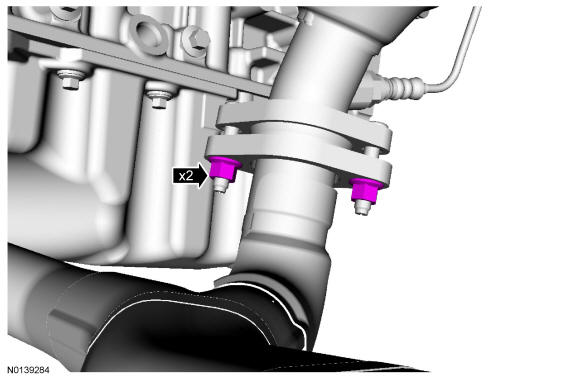

Evenly tighten the 2 new exhaust Y-pipe-to-Right Hand (RH) catalytic converter nuts.
- 1.

  Tighten to 40 Nm (30 lb-ft).

GFD36785

Courtesy of FORD MOTOR COMPANY

4.

Tighten the Torca® clamp retainer.
- 1.

  Tighten to 55 Nm (41 lb-ft).

GFD36780

Courtesy of FORD MOTOR COMPANY

5.

If equipped, install the splash shield and 3 retainers.

GFD34445

Courtesy of FORD MOTOR COMPANY
