Exhaust Flexible Pipe - LH, 3.5L GTDI: Removal

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible pipe or damage to the exhaust system may occur.

1.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to Jacking and Lifting .

Courtesy of FORD MOTOR COMPANY

3.

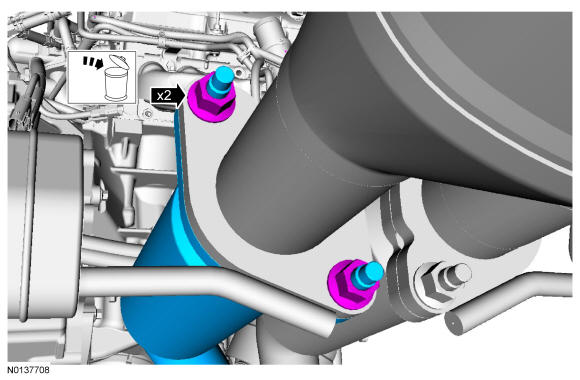

Remove the 2 LH exhaust flexible pipe-to-LH catalytic converter nuts.
- Discard the nuts.

Courtesy of FORD MOTOR COMPANY

4.

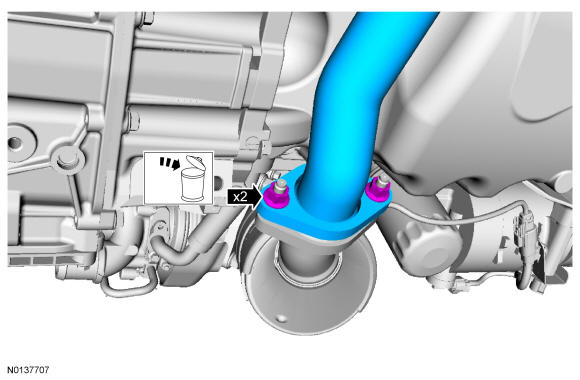

Remove the 2 LH exhaust flexible pipe-to-underbody catalytic converter nuts.
- Discard the nuts and gasket.
- Remove the LH exhaust flexible pipe.

Courtesy of FORD MOTOR COMPANY
