Exhaust Flexible Pipe - LH, 3.5L GTDI: Installation
NOTE:
Do not excessively bend, twist or allow the exhaust to hang from the flexible pipe or damage to the exhaust system may occur.
- 2.
Tighten the LH exhaust flexible pipe-to-underbody catalytic converter nuts.- Tighten to 40 Nm (30 lb-ft).
- 3.NOTE: Make sure the LH exhaust flexible pipe is straight and is approximately 25 mm (0.984 in) from all components.

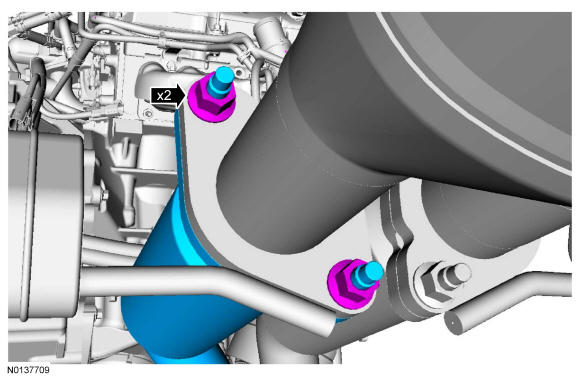

Tighten the LH exhaust flexible pipe-to-LH catalytic converter nuts.
- Alternately tighten the 2 nuts to 40 Nm (30 lb-ft).
