Exhaust Flexible Pipe - RH, 3.5L GTDI: Removal
NOTE:
Do not excessively bend, twist or allow the exhaust to hang from the flexible pipe or damage to the exhaust system may occur.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to Jacking and Lifting .
- 3.

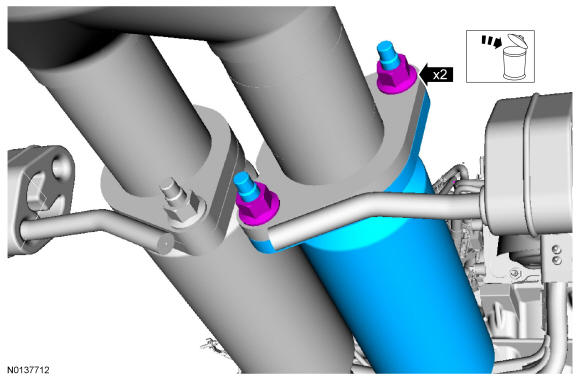

Remove the 2 RH exhaust flexible pipe-to-underbody catalytic converter nuts.- Discard the nuts and gaskets.
- Remove the RH exhaust flexible pipe.
