Muffler and Tailpipe - 2.0L GTDI, 3.5L Ti-VCT: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.

NOTE: Do not use oil or grease-based lubricants on the isolators. These lubricants may cause deterioration of the rubber. This can lead to separation of the isolator from the exhaust hanger bracket during vehicle operation. Use only water-based lubricants on the isolators.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting , Lifting Points.

2.

Loosen the Torca® clamp retainer.
- 1.

  Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Do not damage or tear the isolators during removal.

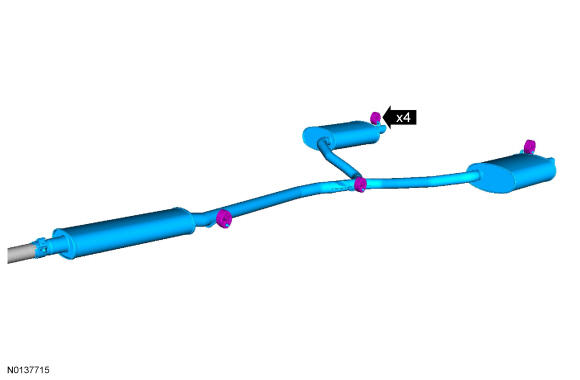

Using soapy water, detach the 4 muffler and tailpipe isolators and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
