Component Locations

WARNING: This page is about a different variant/trim than selected.

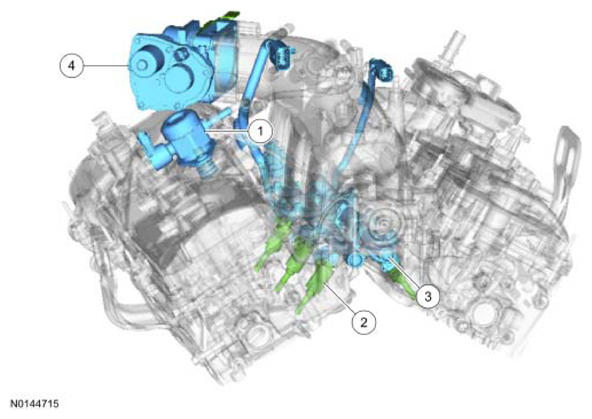

Fuel charging and Controls

G09066784
Item Description Comments
1 Fuel injection pump -
2 Fuel injector -
3 Fuel rail -
1 TB -

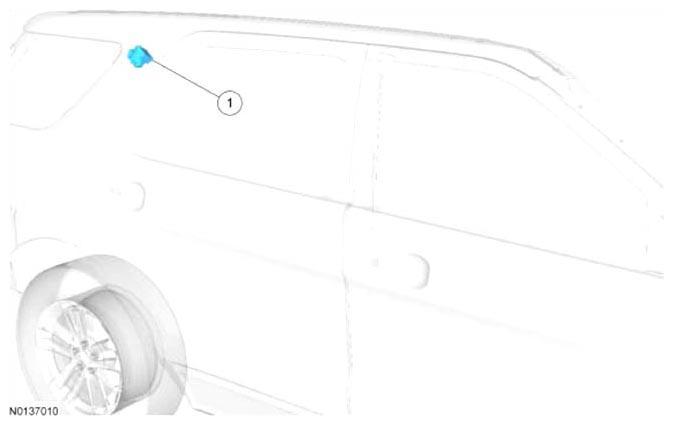

Fuel Pump Control Module (FPCM)

G08030351
Item Description Comments
1 FPCM -
