Liftgate Release Switch: Removal

  1. 1.

    Remove the liftgate trim panel. REFER to Interior Trim and Ornamentation .

  1. 2.

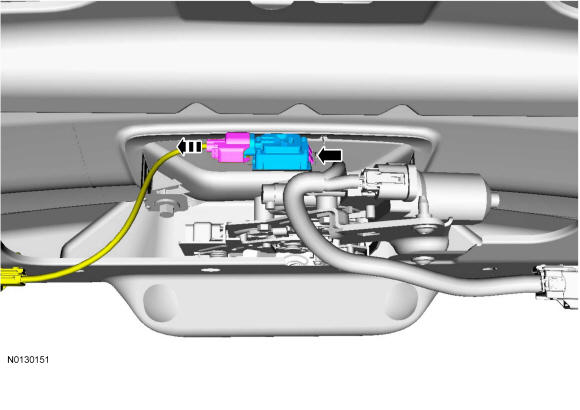

    Remove the liftgate release switch.
    • Disconnect the liftgate release switch electrical connector.
    • Depress the tabs.
    • Remove the liftgate release switch.
GFD37711Courtesy of FORD MOTOR COMPANY
