Turbocharger Coolant Return Tube - LH: Installation

WARNING: This page is about a different variant/trim than selected.

1.

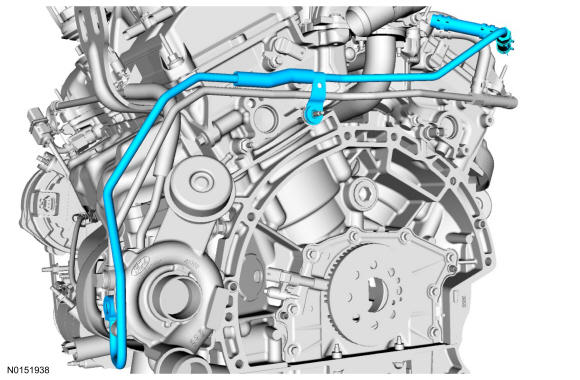

GFD35415

Courtesy of FORD MOTOR COMPANY

2.

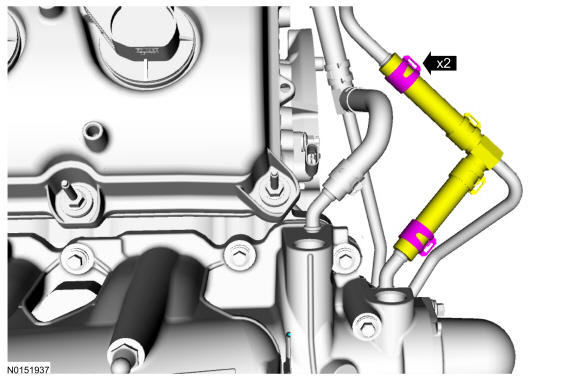

GFD35414

Courtesy of FORD MOTOR COMPANY

3.

Install a new turbocharger coolant tube linked sealing washer.

GFD35416

Courtesy of FORD MOTOR COMPANY

4.

Tighten to 40 Nm (30 lb-ft).

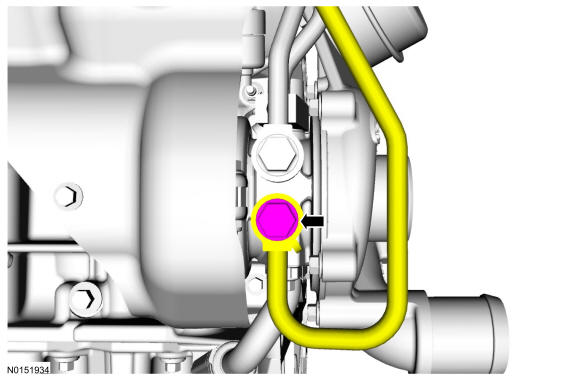

GFD35412

Courtesy of FORD MOTOR COMPANY

5.

Tighten to 12 Nm (107 lb-in).

GFD35411

Courtesy of FORD MOTOR COMPANY

6.

GFD35410

Courtesy of FORD MOTOR COMPANY

7.

GFD35409

Courtesy of FORD MOTOR COMPANY

8.

GFD35408

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  REFER to Fuel System - General Information

GFD35407

Courtesy of FORD MOTOR COMPANY

10.

Instal the air cleaner assembly and the air cleaner outlet tube. REFER to Intake Air Distribution and Filtering

11.

Fill the cooling system. REFER to Engine Cooling

12.

GFD35406

Courtesy of FORD MOTOR COMPANY
