Turbocharger Coolant Supply Tube - RH: Installation

WARNING: This page is about a different variant/trim than selected.

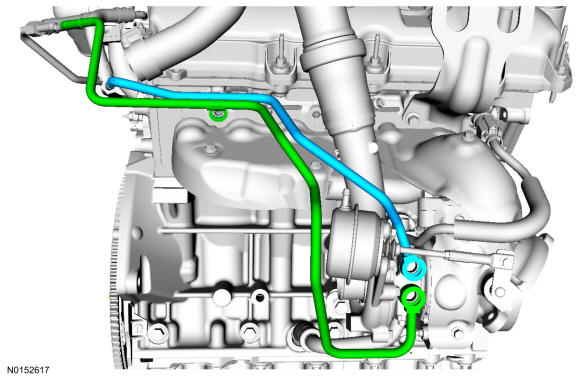

1.

GFD35433

Courtesy of FORD MOTOR COMPANY

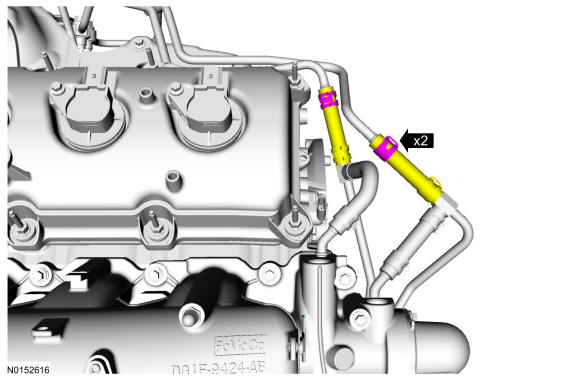

2.

GFD35432

Courtesy of FORD MOTOR COMPANY

3.

Install the 2 new turbocharger coolant tube linked sealing washers.

GFD35434

Courtesy of FORD MOTOR COMPANY

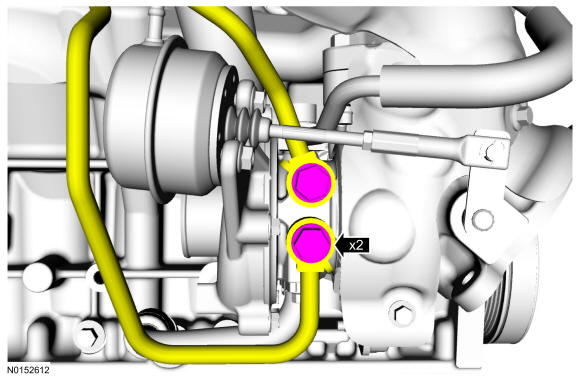

4.

Finger tighten only at this stage.

GFD35430

Courtesy of FORD MOTOR COMPANY

5.

Finger tighten only at this stage.

GFD35420

Courtesy of FORD MOTOR COMPANY

6.

Tighten to 40 Nm (30 lb-ft).

GFD35430

Courtesy of FORD MOTOR COMPANY

7.

Tighten to 12 Nm (107 lb-in).

GFD35420

Courtesy of FORD MOTOR COMPANY

8.

GFD35419

Courtesy of FORD MOTOR COMPANY

9.

Install the turbocharger inlet air tube.
- 1.

  Tighten to 5 Nm (44 lb-in).
- 2.

  Tighten to 5 Nm (44 lb-in).

GFD35424

Courtesy of FORD MOTOR COMPANY

10.

Instal the air cleaner assembly and the air cleaner outlet tube. REFER to Intake Air Distribution and Filtering

11.

11 Nm (97 lb-in).

GFD35417

Courtesy of FORD MOTOR COMPANY

12.

Install the RH catalytic converter. REFER to Exhaust System

13.

Fill the cooling system. REFER to Engine Cooling

14.

GFD35406

Courtesy of FORD MOTOR COMPANY
