Turbocharger Oil Return Tube - LH: Installation

WARNING: This page is about a different variant/trim than selected.

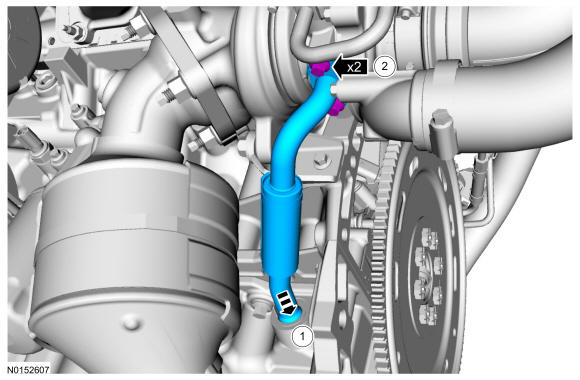

1.

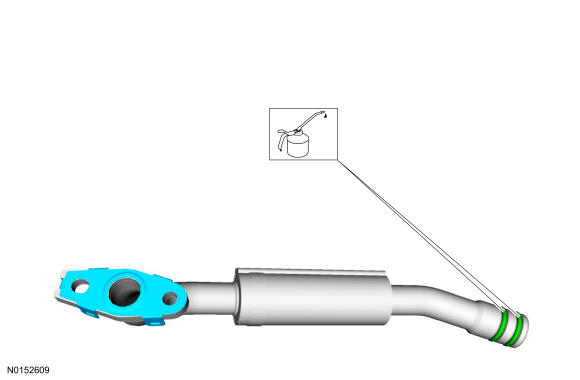

Install a new gasket and 2 new O-ring seals. Material: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

3.

Check and fill the engine oil level as needed with Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent.
