Section 7 (Fuel Charging And Controls - Turbocharger - 3.5L GTDI)
>>
Removal And Installation
>>
Turbocharger Oil Return Tube - RH
>>
Removal
Turbocharger Oil Return Tube - RH: Removal
WARNING:
This page is about a different variant/trim than selected.
1.
With the vehicle in NEUTRAL, position it on a hoist.
REFER to Jacking and Lifting
2.
Remove the 3 twist lock retainers and the underbody duct
Courtesy of FORD MOTOR COMPANY

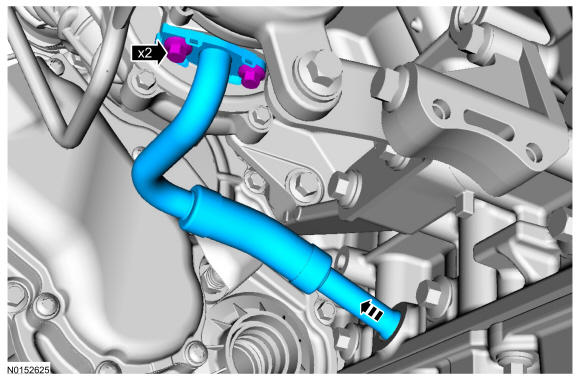

3.
Courtesy of FORD MOTOR COMPANY

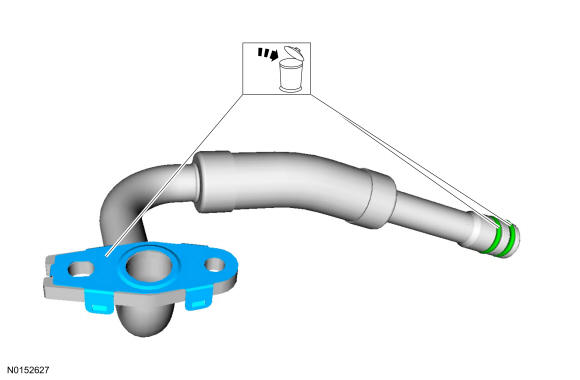

4.
Courtesy of FORD MOTOR COMPANY
