Turbocharger Oil Supply Tube - LH: Installation
WARNING: This page is about a different variant/trim than selected.

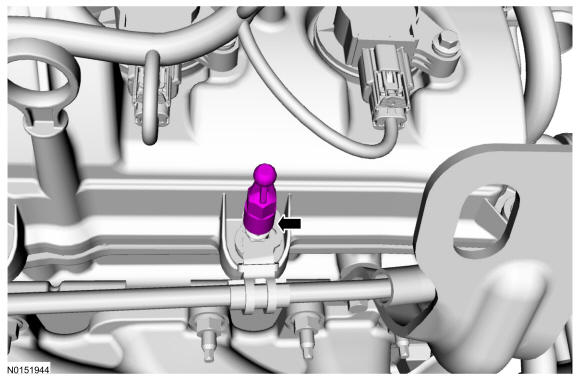

- 1.
If necessary, replace the turbocharger oil supply tube quick connect fitting.
- Tighten to 16 Nm (142 lb-in).
 Courtesy of FORD MOTOR COMPANY
|

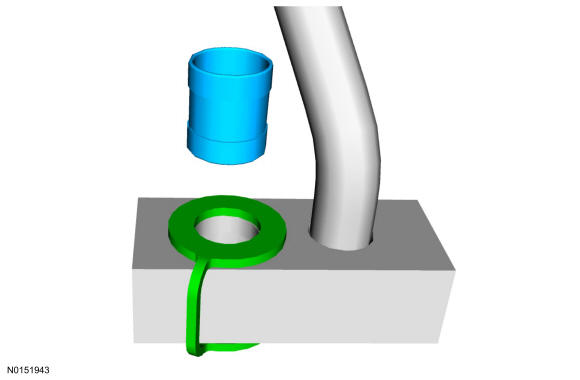

- 2.
Install a new turbocharger oil supply tube filter and a new turbocharger oil supply tube linked sealing washer.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

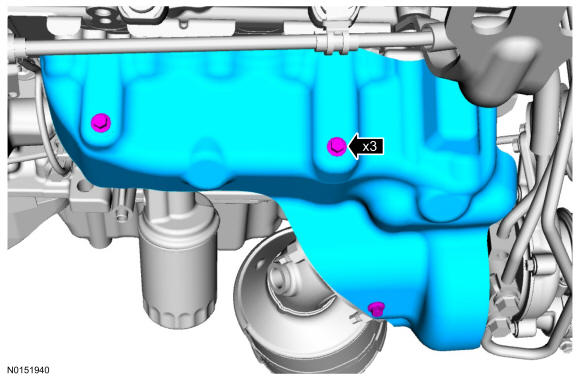

- 5.
Tighten to 8 Nm (71 lb-in).
 Courtesy of FORD MOTOR COMPANY
|

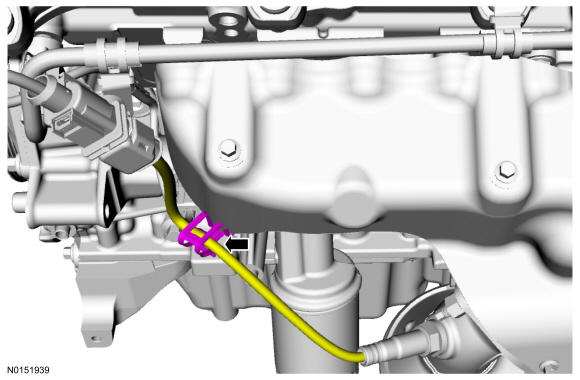

- 6.
Tighten to 6 Nm (53 lb-in).
 Courtesy of FORD MOTOR COMPANY
|

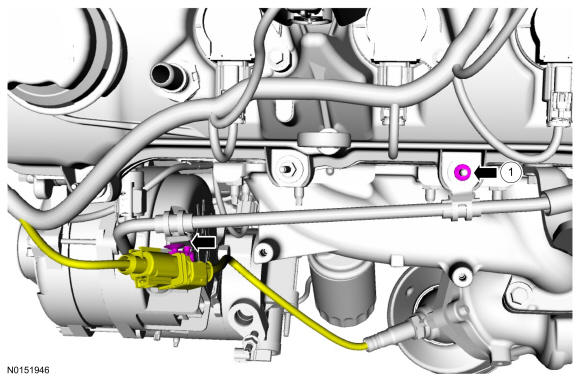

- 7.
Tighten to 40 Nm (30 lb-ft).
 Courtesy of FORD MOTOR COMPANY
|

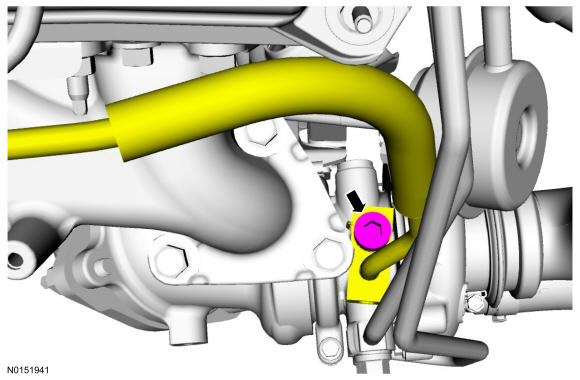

- 8.
Tighten to 12 Nm (106 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 11.
Check and fill the engine oil level as needed with Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent.
