Turbocharger Oil Supply Tube - RH: Installation

WARNING: This page is about a different variant/trim than selected.

1.

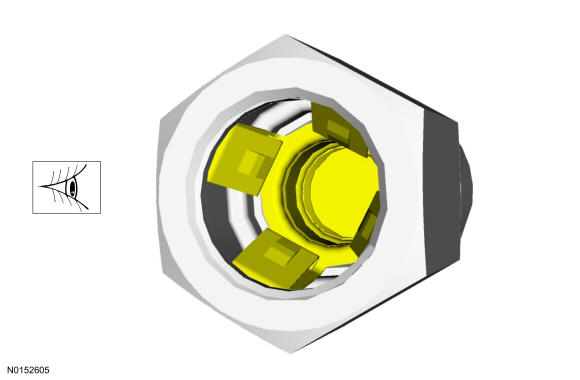

If necessary, replace the turbocharger oil supply tube quick connect fitting.
- Tighten to 16 Nm (142 lb-in).

Courtesy of FORD MOTOR COMPANY

2.

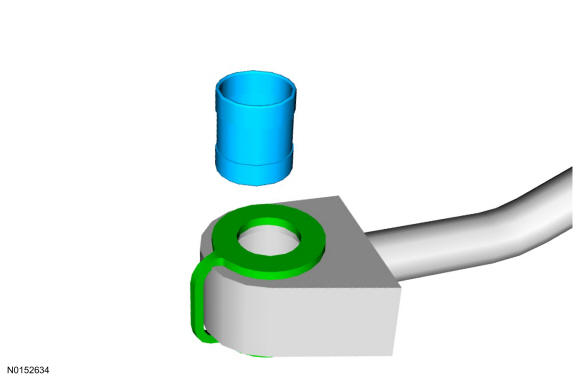

Install a new turbocharger oil supply tube filter and a new turbocharger oil supply tube linked sealing washer.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

5.

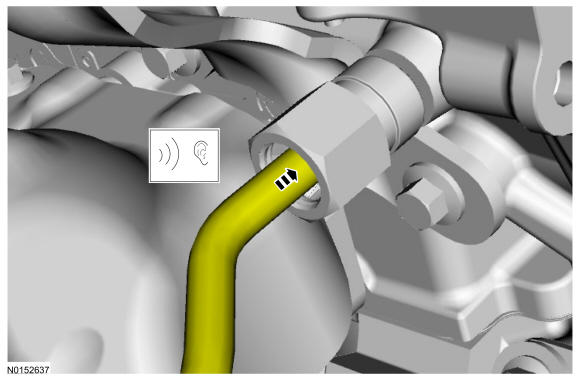

NOTE: Listen for audible click when installing the turbocharger oil supply tube into the quick connect fitting.

REFER to Fuel System - General Information

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

10.

Check and fill the engine oil level as needed with Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent.
