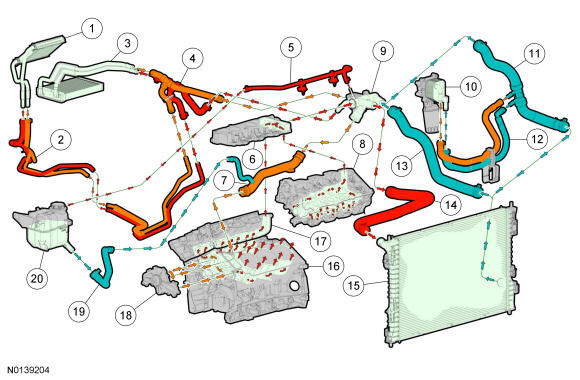

| 1 |
18476 |
Auxiliary heater core |
| 2 |
18K470 |
Auxiliary heater tube assembly |
| 3 |
18476 |
Heater core |
| 4 |
18472 |
Heater hose assembly |
| 5 |
8276 |
Thermostat housing-to-degas bottle hose |
| 6 |
9424 |
Lower intake manifold |
| 7 |
9N271 |
Coolant inlet tube |
| 8 |
6049 |
LH cylinder head |
| 9 |
8A586 |
Thermostat housing |
| 10 |
6881 |
Oil cooler (trailer tow equipped vehicles only) |
| 11 |
8286 |
Lower radiator hose (trailer tow equipped vehicles only) |
| 12 |
8075 |
Oil cooler hose assembly (trailer tow equipped vehicles only) |
| 13 |
8286 |
Lower radiator hose |
| 14 |
8260 |
Upper radiator hose |
| 15 |
8005 |
Radiator |
| 16 |
6010 |
Cylinder block |
| 17 |
6049 |
RH cylinder head |
| 18 |
8501 |
Coolant pump |
| 19 |
8C289 |
Degas bottle-to-coolant inlet tube hose |
| 20 |
8A080 |
Degas bottle |
