3.5L GTDI - LH

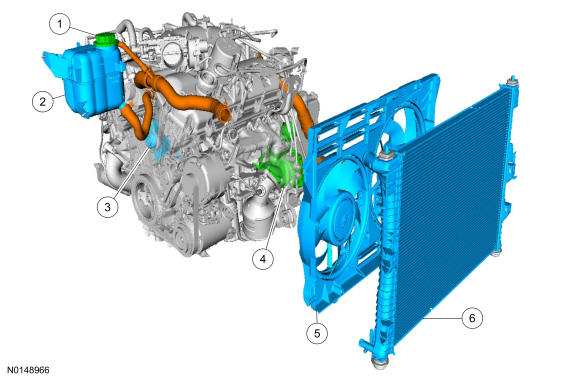

GFD35196Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Pressure relief cap
2 - Degas bottle
3 - Coolant pump
4 - LH turbocharger
5 - Cooling fan motor and shroud
6 - Radiator
