3.5L GTDI - RH

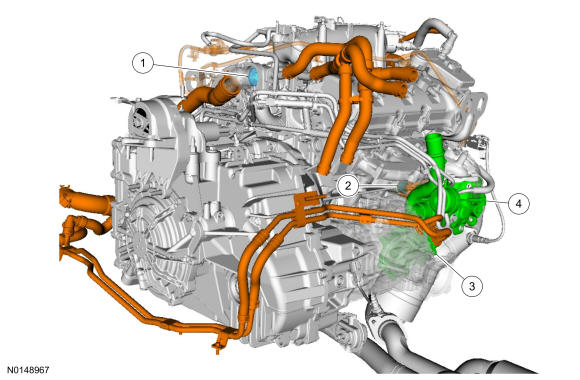

GFD35197Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Thermostat
2 - Block heater
3 - PTU cooler
4 - RH turbocharger
