Block Heater - 3.5L GTDI, 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

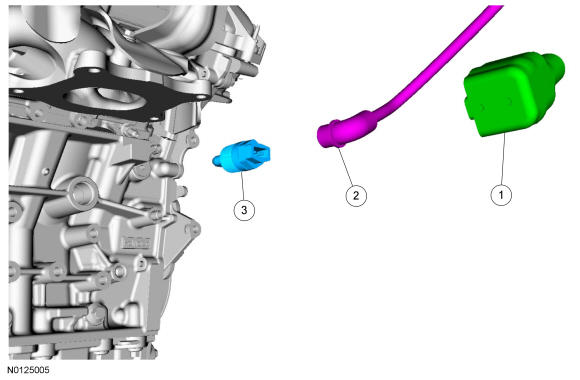

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Block heater electrical connector heat shield (Part of 6B018) | - | - | - |
| 2 | 6B018 | Block heater wiring harness | - | - | - |
| 3 | 6A051 | Block heater | 40 Nm (30 lb-ft) | - | - |
