Coolant Inlet Pipe - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Orange Concentrated Antifreeze/Coolant VC-3-B (US); CVC-3-B2 (Canada) | WSS-M97B44-D |
| Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B (US); CVC-3DIL-B (Canada) | WSS-M97B44-D2 |

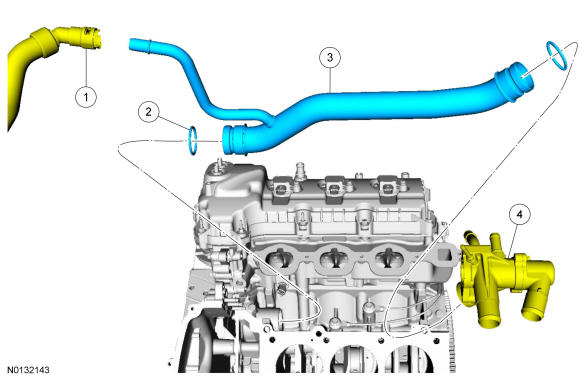

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 8C289 | Degas bottle-to-coolant inlet pipe hose | - | - | - |
| 2 | 8527 | Coolant inlet pipe O-ring seal (2 required) | - | Motorcraft® Orange Antifreeze-Coolant Concentrated | - |
| 3 | 8A505 | Coolant inlet pipe | - | - | - |
| 4 | 8A586 | Thermostat housing | - | - | - |
