Cooling Fan Motor and Shroud - 3.5L GTDI: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the ACL and the ACL outlet pipe. REFER to Intake Air Distribution and Filtering .

• 2.

  If equipped.

Courtesy of FORD MOTOR COMPANY

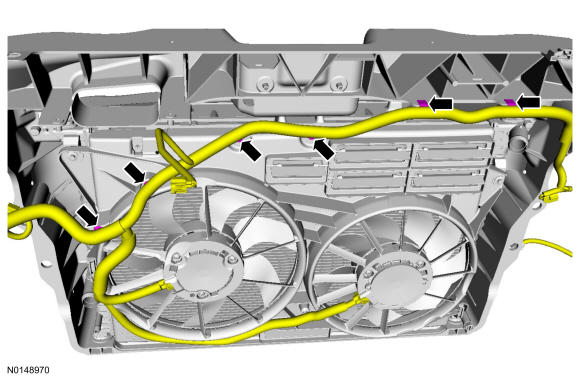

• 3.



Courtesy of FORD MOTOR COMPANY

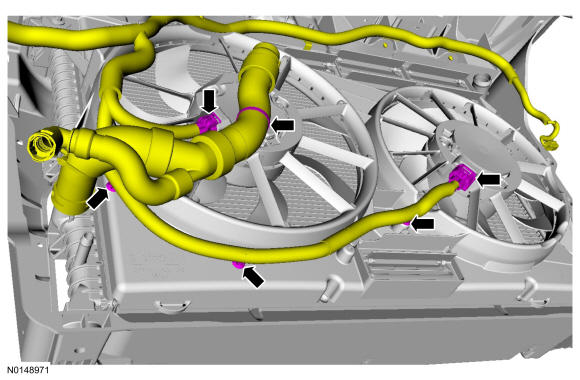

• 4.


  • To install, tighten to 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY

• 5.



Courtesy of FORD MOTOR COMPANY

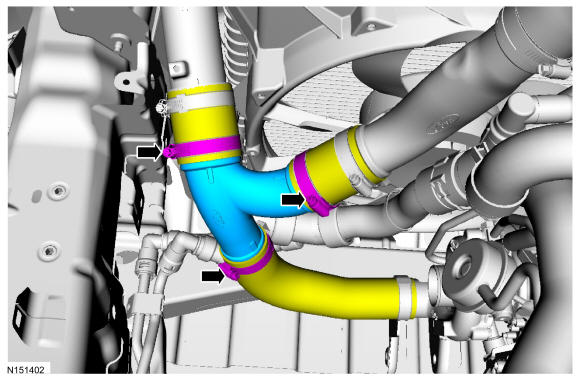

• 6.



Courtesy of FORD MOTOR COMPANY

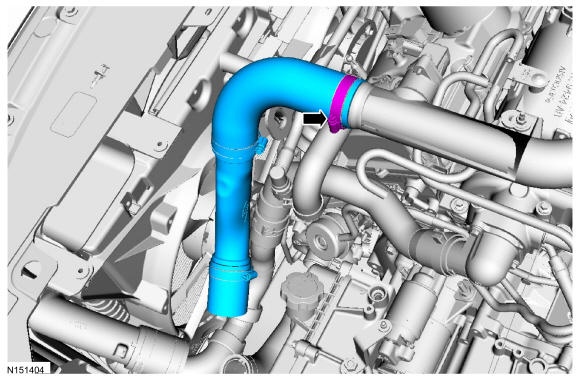

• 7.


  NOTE: Align the Index marks for the RH CAC tube.
  • To install, tighten to 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY

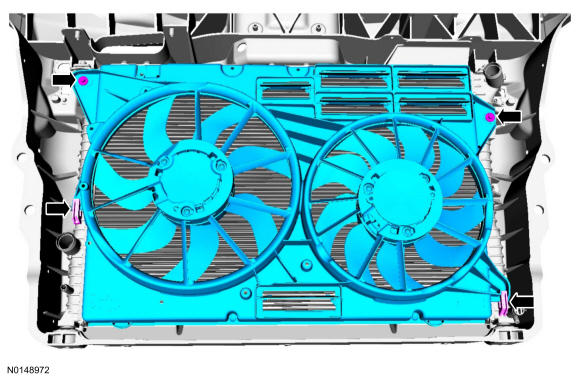

• 8.


  • To install, tighten to 6 Nm (53 lb-in).

Courtesy of FORD MOTOR COMPANY
