Coolant Pump - 2.0L GTDI: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
NOTE:
Use Motorcraft® Orange Antifreeze/Coolant. Use the same type of coolant originally used to fill the cooling system. Do not mix coolant types. Mixing coolant types degrades the coolant corrosion protection and may damage the engine or cooling system.
NOTE:
During normal vehicle operation, Motorcraft® Orange Antifreeze/Coolant may change color from orange to pink or light red. As long as the engine coolant is clear and uncontaminated, this color change does not indicate the engine coolant has degraded nor does it require the engine coolant to be drained, the system to be flushed, or the engine coolant to be replaced.
All vehicles
- 1.
Refer to Cooling System Draining, Filling and Bleeding .

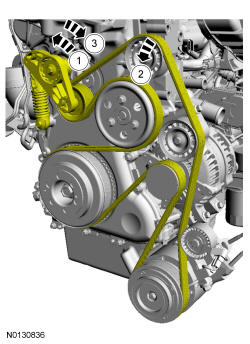

Early build vehicles

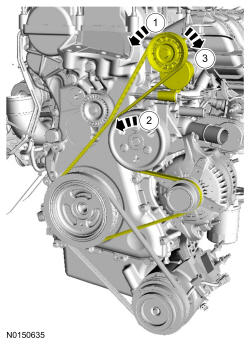

Late build vehicles
All vehicles
NOTE:

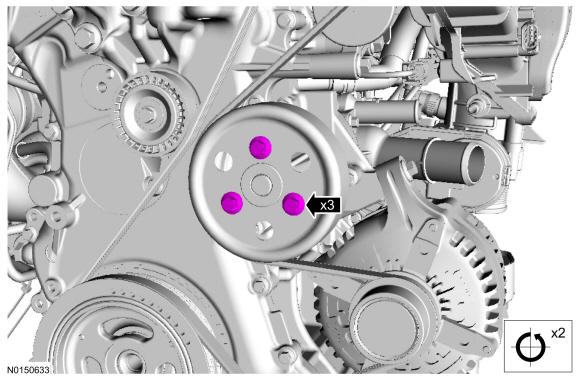

Early build vehicle shown in illustration, late build vehicle similar.
