Coolant Pump - 2.0L GTDI: Installation

All vehicles

NOTE: Early build vehicle shown in illustration, late build vehicle similar.

1.

NOTE: Use Motorcraft® Orange Antifreeze/Coolant. Do not mix coolant types. Mixing coolant types degrades the coolant corrosion protection and may damage the engine or cooling system.
- 1.

  Apply clean engine coolant.
- 2.

  Tighten to 10 Nm (89 lb-in).

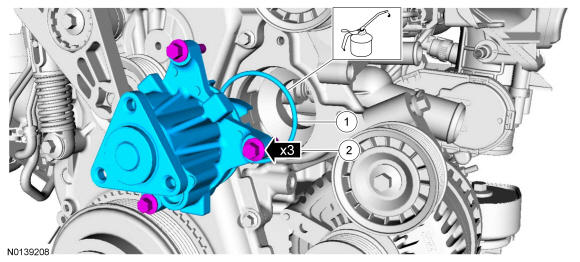

GFD35245

Courtesy of FORD MOTOR COMPANY

2.
- Finger-tight.

GFD35243

Courtesy of FORD MOTOR COMPANY

Late build vehicles

3.

NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.

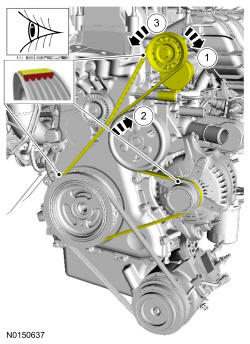

GFD35246

Courtesy of FORD MOTOR COMPANY

4.
- Tighten to 20 Nm (177 lb-in).

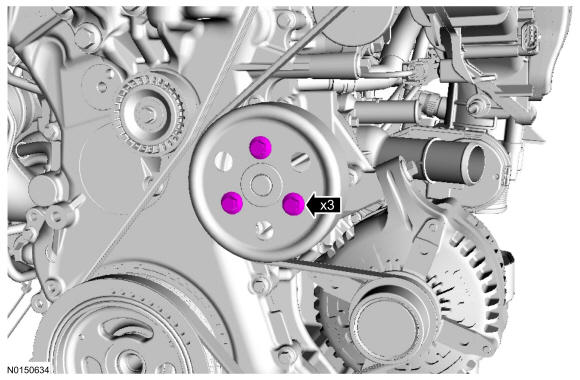

GFD35247

Courtesy of FORD MOTOR COMPANY

Early build vehicles

5.

NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.

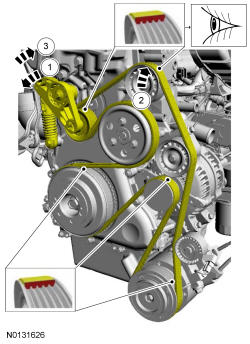

GFD35248

Courtesy of FORD MOTOR COMPANY

6.
- Tighten to 20 Nm (177 lb-in).

GFD35239

Courtesy of FORD MOTOR COMPANY

All vehicles

7.

Refer to Cooling System Draining, Filling and Bleeding .
