Coolant Pump - 3.5L GTDI: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

1.

Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .

2.

Remove the engine front cover. Refer to ENGINE - 3.5L GTDI .

3.

Remove and discard the oil filter.

GFD35249

Courtesy of FORD MOTOR COMPANY

4.

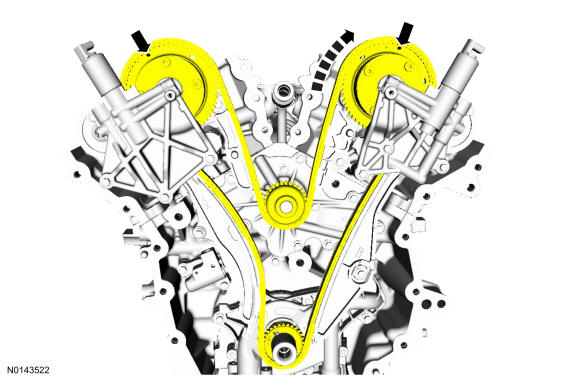

Rotate the crankshaft clockwise and align the timing marks on the VCT assemblies as shown in illustration.

GFD34942

Courtesy of FORD MOTOR COMPANY

5.

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install the Special Tool(s): Tool, Camshaft Holding 303-1248.

GFD34943

Courtesy of FORD MOTOR COMPANY

6.

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install the Special Tool(s): Tool, Camshaft Holding 303-1248.

GFD34944

Courtesy of FORD MOTOR COMPANY

7.

Remove the 3 bolts and the RH VCT housing.

GFD34945

Courtesy of FORD MOTOR COMPANY

8.

Remove the 3 bolts and the LH VCT housing.

GFD34946

Courtesy of FORD MOTOR COMPANY

NOTE: The following 3 steps are for primary timing chains when the colored links are not visible.

9.

Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.

GFD34947

Courtesy of FORD MOTOR COMPANY

10.

Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.

GFD34948

Courtesy of FORD MOTOR COMPANY

11.

NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.

GFD34949

Courtesy of FORD MOTOR COMPANY

12.

Remove the 2 bolts and the primary timing chain tensioner.

GFD34950

Courtesy of FORD MOTOR COMPANY

13.

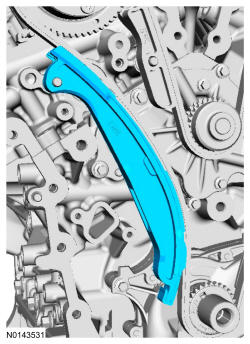

Remove the primary timing chain tensioner arm.

GFD34951

Courtesy of FORD MOTOR COMPANY

14.

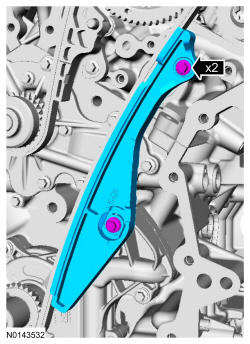

Remove the 2 bolts and the lower LH primary timing chain guide.

GFD34952

Courtesy of FORD MOTOR COMPANY

15.

Remove the primary timing chain.

GFD34953

Courtesy of FORD MOTOR COMPANY

16.

Remove the bolt and the upper LH primary timing chain guide.

GFD34965

Courtesy of FORD MOTOR COMPANY

17.

Compress the RH secondary timing chain tensioner and install a lockpin to retain the tensioner in the collapsed position.

GFD34969

Courtesy of FORD MOTOR COMPANY

18.

NOTE: The VCT bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.

Remove the RH VCT assembly bolt and the RH exhaust camshaft sprocket bolt. Discard the specified component. Follow local disposal regulations.
- Remove the RH VCT assembly, secondary timing chain and the RH exhaust camshaft sprocket as an assembly.
- Discard the bolts.

GFD34970

Courtesy of FORD MOTOR COMPANY

19.

Remove the bolt and the RH timing chain guide.

GFD34972

Courtesy of FORD MOTOR COMPANY

20.

Place clean lint-free shop towels in the oil pan opening to prevent coolant from entering the oil pan during coolant pump removal.

21.

Remove the 8 bolts and the coolant pump.

GFD35250

Courtesy of FORD MOTOR COMPANY

22.

Remove and discard the gaskets.

GFD35251

Courtesy of FORD MOTOR COMPANY
