Coolant Pump - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) | WSS-M2C945-A |

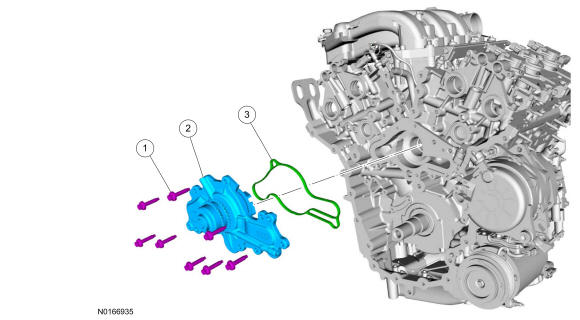

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | W503278 | Coolant pump bolt (8 required) |
| 2 | 8501 | Coolant pump |
| 3 | 8507 | Coolant pump gasket |
