Radiator - 2.0L GTDI: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to Cooling System Draining, Filling and Bleeding .
- 2.
Refer to Cooling Fan Motor and Shroud - 2.0L GTDI .
- 3.
REFER to Bumpers - Front.

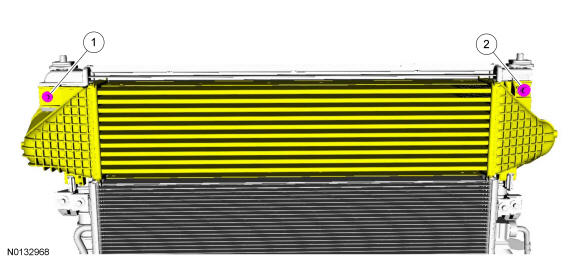

- 9.NOTE: The longer bolt is installed on the LH side.
-
- 8 Nm (71 lb-in).
-
- 6 Nm (53 lb-in).

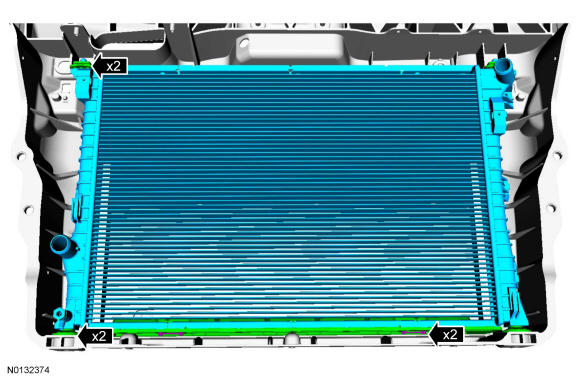

- Position the top of the radiator toward the engine for access.
-
