Thermostat - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Orange Concentrated Antifreeze/Coolant VC-3-B (US); CVC-3-B2 (Canada) | WSS-M97B44-D |
| Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B (US); CVC-3DIL-B (Canada) | WSS-M97B44-D2 |

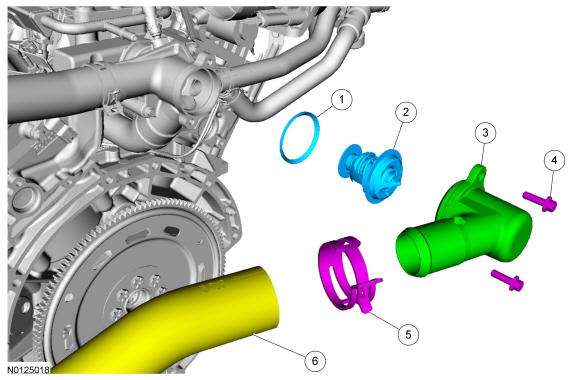

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 8255 | Thermostat O-ring seal | - | Motorcraft® Orange Antifreeze-Coolant Concentrated | - |
| 2 | 8575 | Thermostat | - | - | - |
| 3 | - | Coolant inlet connection (part of 8A586) | - | - | - |
| 4 | W500014 | Coolant inlet connection bolt | 10 Nm (89 lb-in) | - | - |
| 5 | - | Lower radiator hose clamp (part of 8286) | - | - | - |
| 6 | 8286 | Lower radiator hose | - | - | - |
