Thermostat Housing - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Orange Concentrated Antifreeze/Coolant VC-3-B (US); CVC-3-B2 (Canada) | WSS-M97B44-D |
| Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B (US); CVC-3DIL-B (Canada) | WSS-M97B44-D2 |

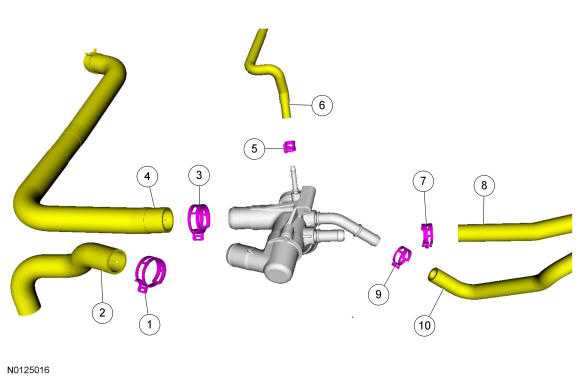

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Lower radiator hose clamp (part of 8286) |
| 2 | 8286 | Lower radiator hose |
| 3 | - | Upper radiator hose clamp (part of 8260)=) |
| 4 | 8260 | Upper radiator hose |
| 5 | - | Thermostat housing-to-degas bottle hose clamp (part of 8267) |
| 6 | 8267 | Thermostat housing-to-degas bottle hose |
| 7 | W527362 | Heater outlet hose clamp |
| 8 | - | Heater outlet hose (part of 18472) |
| 9 | W527362 | Heater inlet hose clamp |
| 10 | - | Heater inlet hose (part of 18472) |

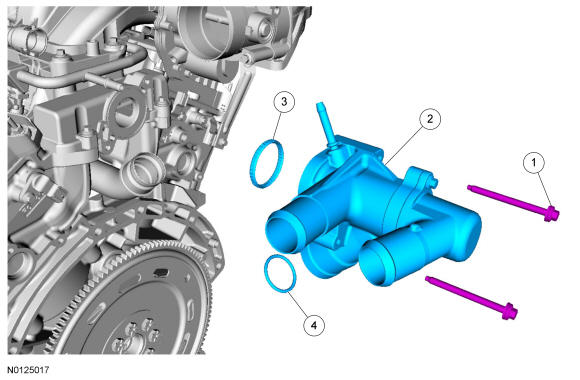

| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W713197 | Thermostat housing bolt (2 required) | - | - | - |
| 2 | 8A586 | Thermostat housing | - | - | - |
| 3 | 8590 | Thermostat housing gasket | - | - | - |
| 4 | 8527 | Coolant inlet pipe O-ring seal | - | Motorcraft® Orange Antifreeze-Coolant Concentrated | - |
