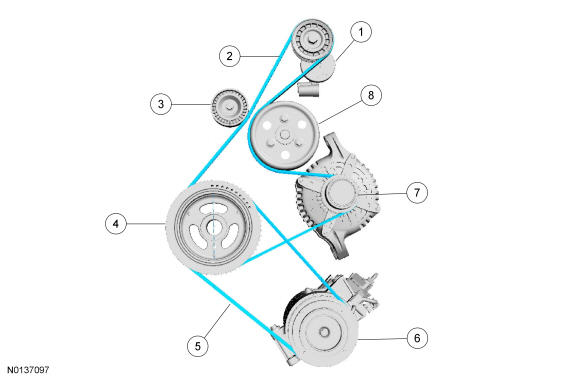

2.0L GTDI - Late Build - Component Location
Courtesy of FORD MOTOR COMPANY| Item | Part Number | Description | Torque |
|---|---|---|---|
| 1 | 6A228 | Accessory drive belt tensioner | 25 Nm (18 lb-ft) |
| 2 | 6C301 | Accessory drive belt | - |
| 3 | 19A216 | Drive belt idler pulley assembly | 11 Nm (97 lb-in) |
| 4 | 6316 | Crankshaft belt pulley | REFER to Crankshaft Pulley. |
| 5 | 6C301 | Belt- A/C compressor | - |
| 6 | 19D784 | Pulley - A/C compressor | - |
| 7 | 10346 | Generator pulley | - |
| 8 | 8509 | Coolant pump pulley | REFER to Coolant Pump - 2.0L GTDI. |
