3.5L GTDI, 3.5L, Twin Independent Variable Cam Timing (Ti-VCT) Component Location

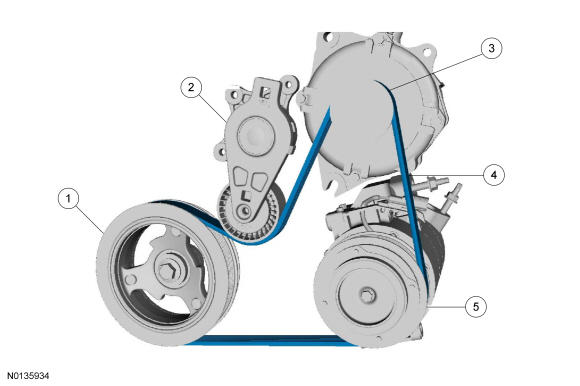

Fig 1: Acessory Drive Belt Routing And Component Location - 3.5L GTDI, 3.5L
GFD35464Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description
1 6D334 Crankshaft belt pulley
2 6B209 Accessory drive belt tensioner
3 10300 Generator pulley
4 8620 Accessory drive belt
5 19D629 Pulley - A/C compressor
