Accessory Drive Belt Tensioner - 2.0L GTDI: Installation

Late build

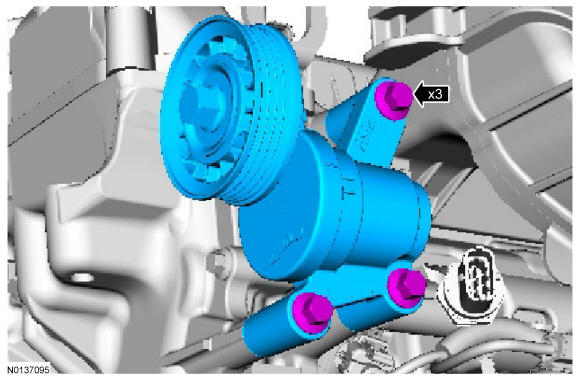

1. 1.

   Tighten to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

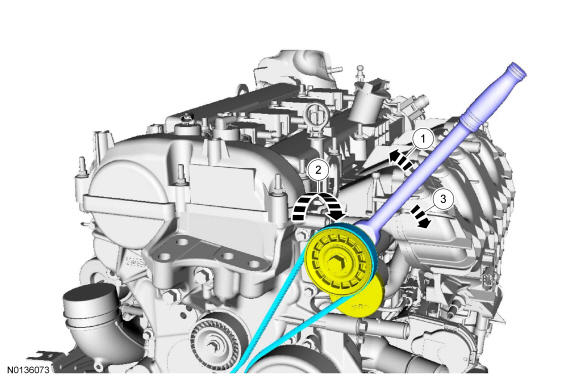

1. 2.



Courtesy of FORD MOTOR COMPANY

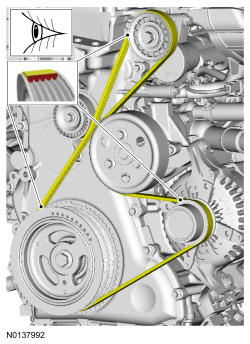

1. 3.


   NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.

Courtesy of FORD MOTOR COMPANY

Early build

1. 4.

   Install the accessory drive belt. Refer to Accessory Drive Belt - 2.0L GTDI .
