Roof Opening Panel - Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

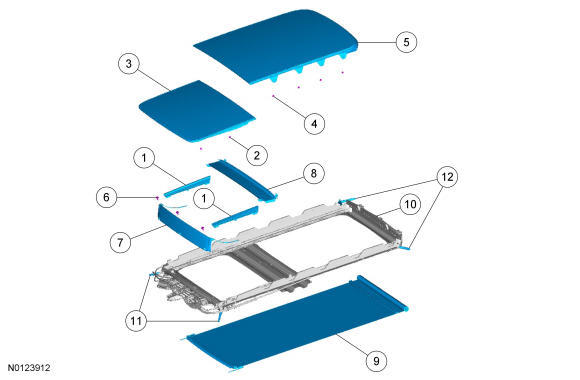

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 500A66 | Concertina blinds (Right Hand (RH) / LH) | - | - | - |
| 2 | W790256 | Front sliding glass panel screw (4 required) | - | - | 5 Nm (44 lb-in) |
| 3 | 500A18 | Front sliding glass panel assembly | - | - | - |
| 4 | W790256 | Rear fixed glass screw (8 required) | - | - | 5 Nm (44 lb-in) |
| 5 | 500A18 | Rear fixed glass panel assembly | - | - | - |
| 6 | - | Air deflector screw (3 required) | - | - | - |
| 7 | 500A26 | Air deflector assembly | - | - | - |
| 8 | 54022 | Roof opening panel drain trough assembly | - | - | - |
| 9 | 519A02 | Power shade assembly | - | - | - |
| 10 | 502C22 | Roof opening panel frame assembly | - | - | - |
| 11 | 501A98 / 501A99 | Roof opening panel front drain hoses (Right Hand (RH) / LH) | - | - | - |
| 12 | 501A94 / 501A95 | Roof opening panel rear drain hoses (Right Hand (RH) / LH) | - | - | - |

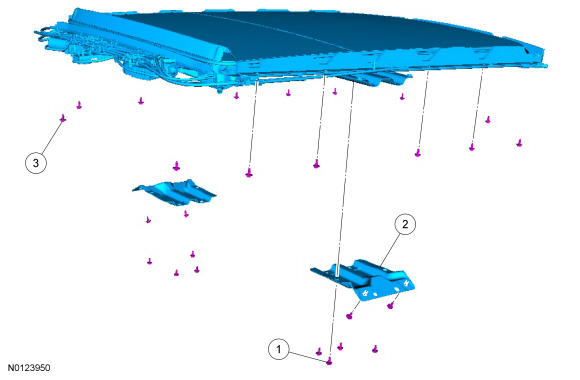

| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W710593 | Roof opening panel frame bracket bolt (12 required) | - | - | 6 Nm (53 lb-in) |
| 2 | 51890 / 51891 | Roof opening panel frame brackets (Right Hand (RH) / LH) | - | - | - |
| 3 | W710593 | Roof opening panel frame bolt (14 required) | - | - | 6 Nm (53 lb-in) |

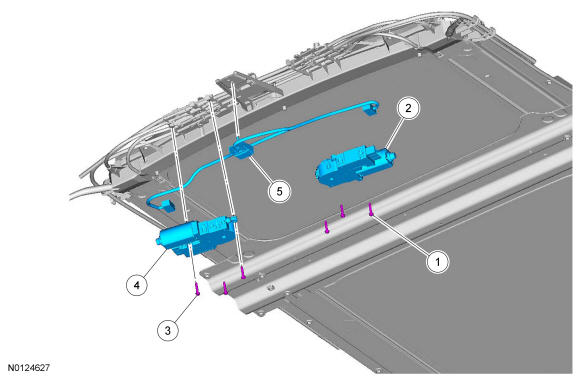

| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Front sliding glass panel motor screw (3 required) | - | - | - |
| 2 | 15790 | Front sliding glass panel motor assembly | - | - | - |
| 3 | - | Power shade motor screw (3 required) | - | - | - |
| 4 | 15790 | Power shade motor assembly | - | - | - |
| 5 | 15A657 | Roof opening panel wiring jumper harness | - | - | - |
