Roof Opening Panel Control Switch: Removal

  1. 1.

    Remove the overhead console. REFER to Instrument Panel and Console .

  1. 2.

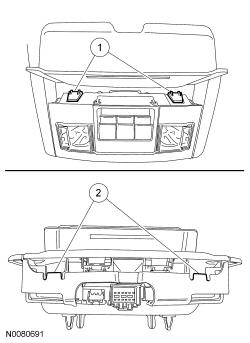

    Remove the light assembly from the overhead console.
    • Release the 2 rear tabs and rotate the light assembly slightly away from the overhead console.
    • Release the 2 front tabs and remove the light assembly from the overhead console.
GFD37755Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disengage the 4 tabs and remove the switch from the light assembly.
GFD37756Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disengage the 2 tabs and remove the switch bezel from the switch.
GFD37757Courtesy of FORD MOTOR COMPANY
