Roof Opening Panel Control Switch: Installation

1. 1.

   Engage the 2 tabs and connect the switch bezel to the switch.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Engage the 4 tabs and install the switch into the light assembly.

Courtesy of FORD MOTOR COMPANY

1. 3.

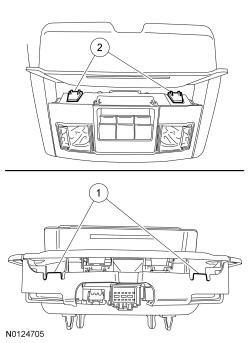

   Install the light assembly into the overhead console.
   • Install the light assembly into the over head console and engage the 2 front tabs.
   • Rotate the light assembly slightly toward the over head console and engage the 2 rear tabs.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Install the overhead console. REFER to Instrument Panel and Console .
