Direct Current Alternating Current (DC AC) Inverter: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

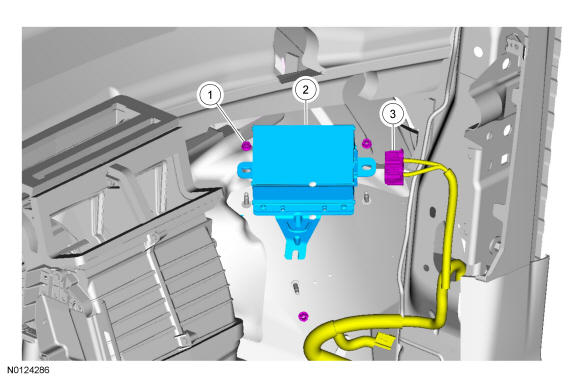

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W705460 | DC /AC inverter nut (3 required) | - | - | 9 Nm (80 lb-in) |
| 2 | 19G317 | DC /AC inverter | - | - | - |
| 3 | - | DC /AC inverter electrical connector (part of 14A005) | - | - | - |
