Active Park Assist Switch: Removal

  1. 1.

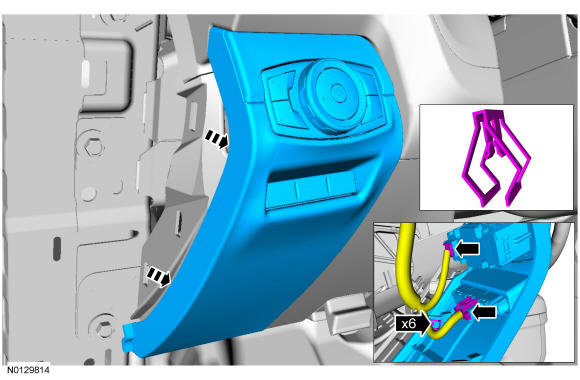

    Remove the lower LH instrument panel trim panel.

    1. 1.

      Disconnect the 2 electrical connectors.
GFD36629Courtesy of FORD MOTOR COMPANY

  1. 2.

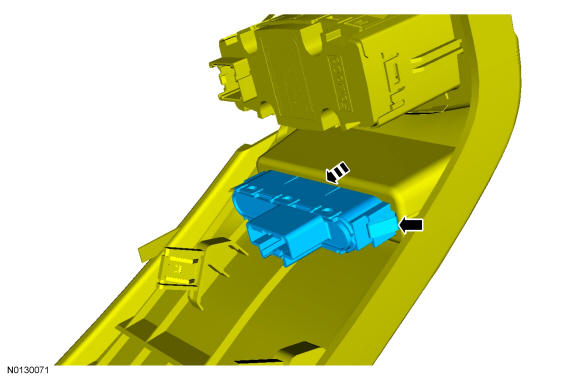

    Release the retainers and remove the active park assist switch.
GFD37000Courtesy of FORD MOTOR COMPANY
