Parasitic Load Explanation & Test Procedures - General Information
>>
Testing For Parasitic Load
>>
Quad Driver Test
Quad Driver Test

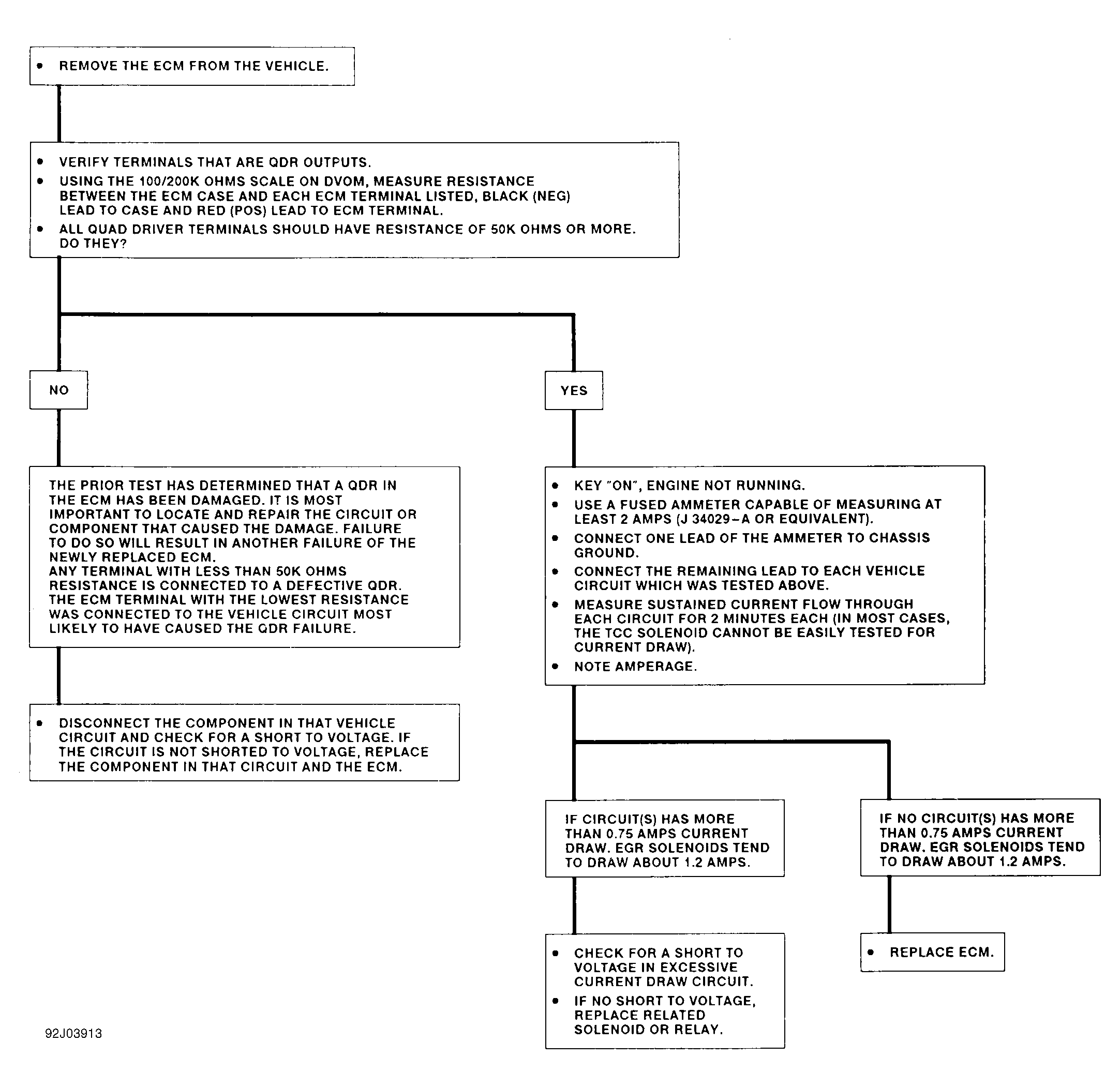

Fig 1: Quad Driver Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
