Ford
>>
2015
>>
Explorer Limited, 3.5L Eng VIN 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts
>>
Component Location Charts
>>

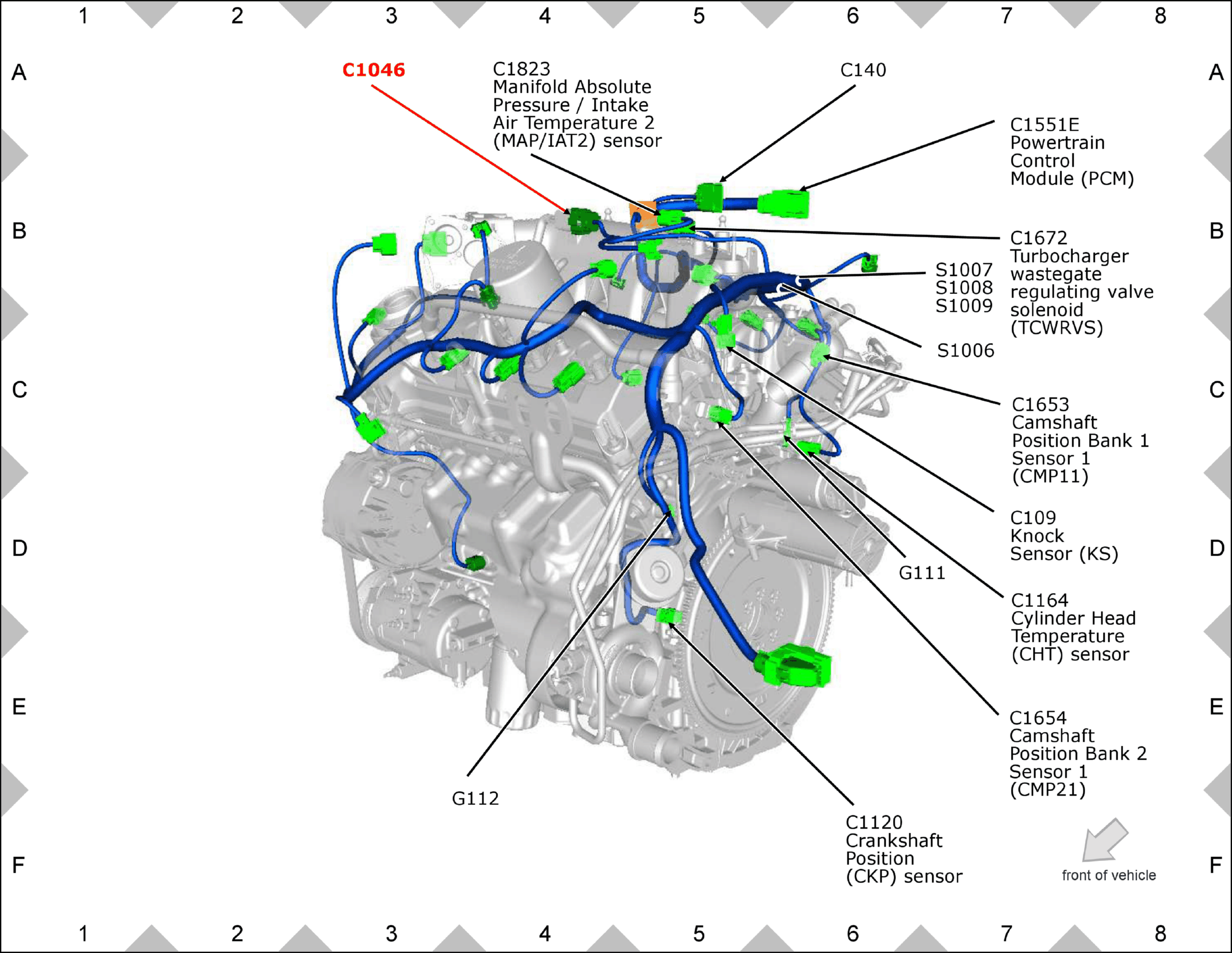

C1046 (3.5L GTDI) Engine, top
C1046 (3.5L GTDI) Engine, top
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
