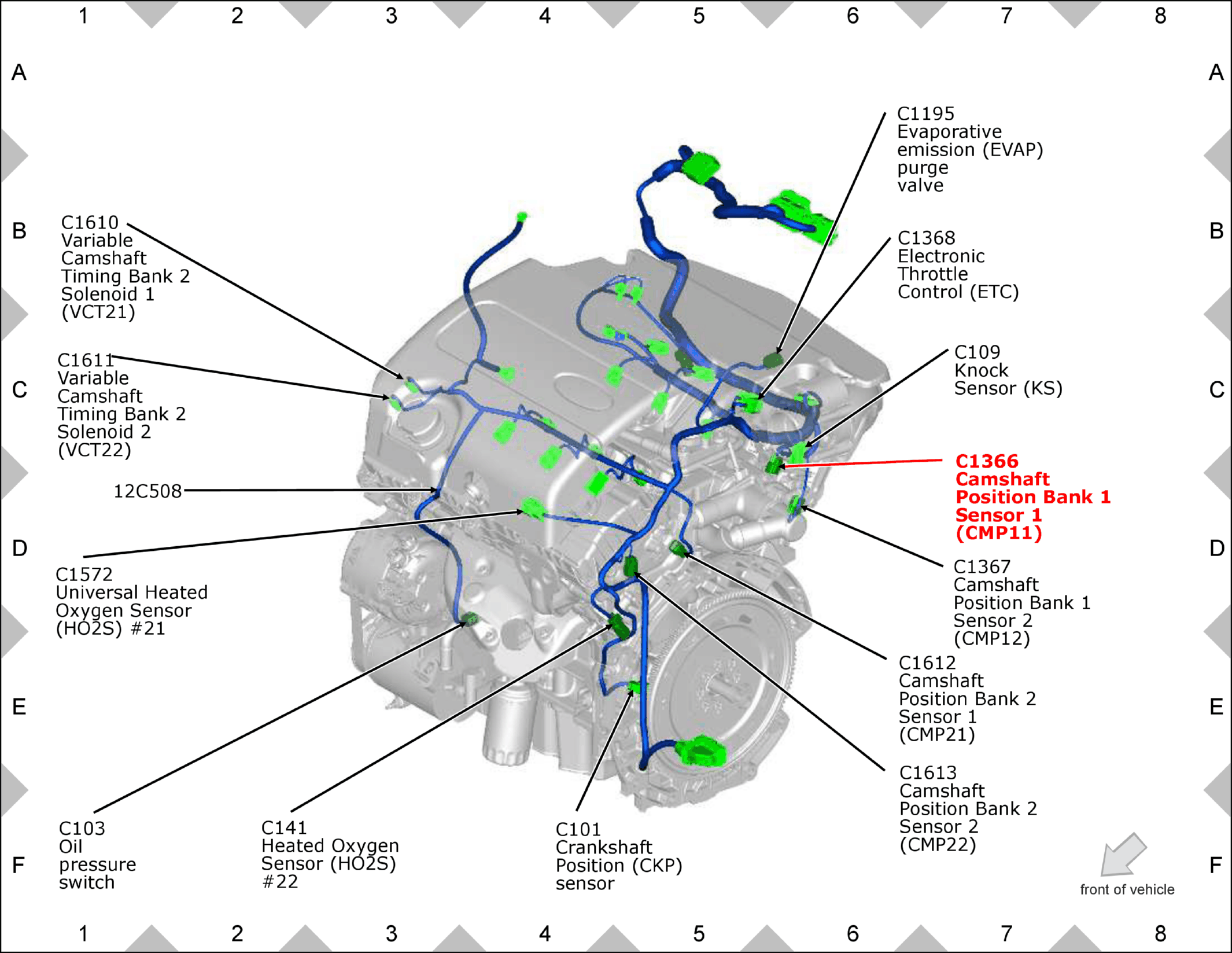

C1366 (3.5L or 3.7L TIVCT) Engine, top rear, LH side
C1366 (3.5L or 3.7L TIVCT) Engine, top rear, LH side
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
