Remote Function Actuator (RFA) Module: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

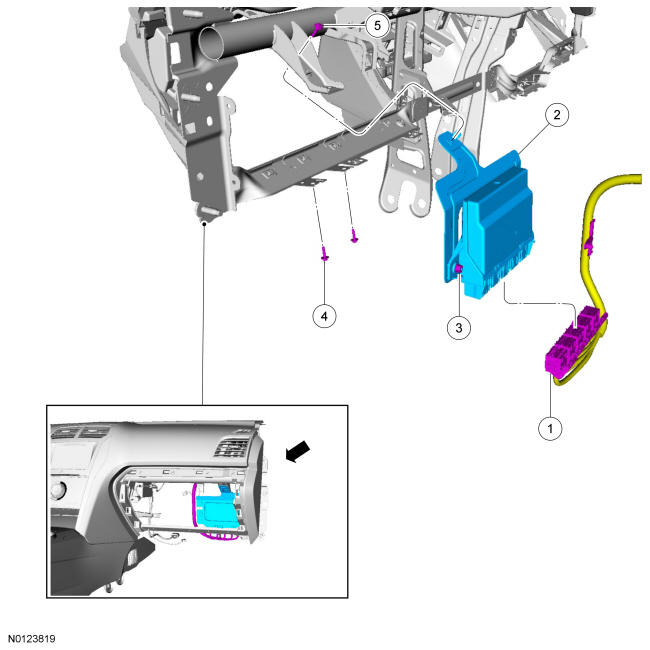

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | RFA electrical connectors | |||
| 2 | 19G481 | RFA module | |||
| 3 | N621901 | RFA module nut (2 required) | 3 Nm (27 lb-in) | ||
| 4 | W702921 | RFA module bracket bottom bolt (2 required) | 5 Nm (44 lb-in) | ||
| 5 | W707628 | RFA module bracket top bolt | 5 Nm (44 lb-in) |
