Pinpoint Test JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction: Notes
NOTE:
There is additional information available on this procedure. Refer to the Service Tips tab and select the appropriate test listed under the Job Aids title.
For 2 wire coil harness connectors, select the PCM Ignition Coil Driver Test.
For 3 wire coil harness connectors, select the Driver On Coil Ignition Test.
This pinpoint test is intended to diagnose the following:
- ignition coils (12029)
- ignition coil harness
- PCM (12A650)

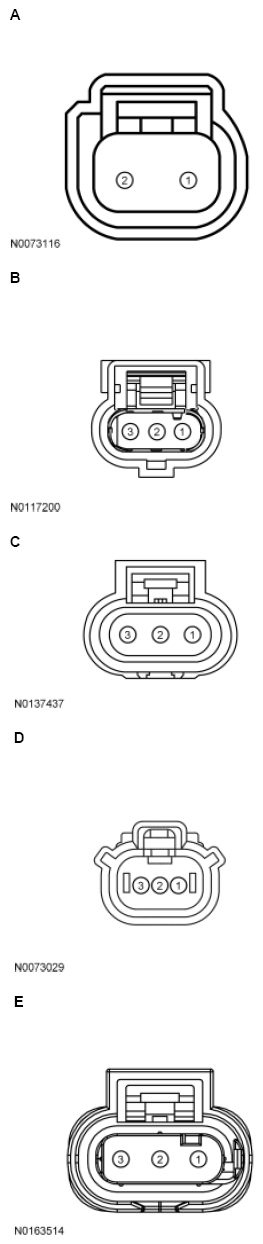

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, F-Series Super Duty 6.8L, Motorhome/Stripped Chassis/Step Van |
A | 2 1 |
COP VPWR |
| Edge 2.0L, Edge 2.7L, Escape/Kuga 2.0L, Explorer 2.0L, F-150 2.7L, Focus 2.0L, Fusion 2.0L, MKC, MKT 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L |
B | 1 2 3 |
COP GND VPWR |
| Escape/Kuga 1.6L, Fiesta, Fusion 1.5L, Fusion 1.6L, Transit Connect 1.6L |
C | 1 2 3 |
COP GND VPWR |
| Escape/Kuga 2.5L, Fusion 2.5L, Transit Connect 2.5L |
A | 1 2 |
COP VPWR |
| Expedition, Explorer GTDI 3.5L, F-150 GTDI 3.5L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Navigator, Taurus GTDI 3.5L, Transit 3.5L |
D | 2 1 3 |
COP GND VPWR |
| F-Series Super Duty 6.2L | D | 3 1 |
COP VPWR |
| Focus 1.0L | E | 1 2 3 |
COP GND VPWR |
| All other vehicles | D | 1 3 |
COP VPWR |
