Typical VECI Decal

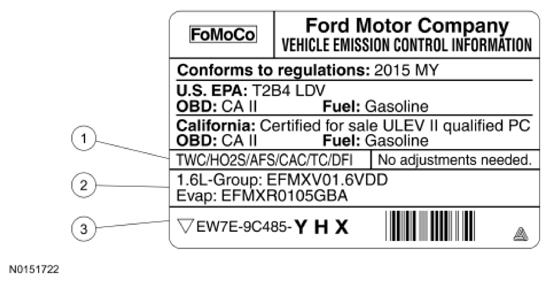

Fig 1: VECI Decal Location
G09956791Courtesy of FORD MOTOR CO.
Item Number Description
1 - Exhaust Emission Control System
2 - Engine Evaporative Family Information
3 - Label Part Number

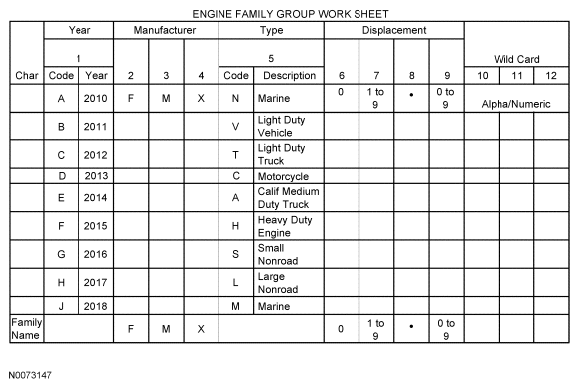

Fig 2: Engine Family Group Work Sheet
G06288649Courtesy of FORD MOTOR CO.

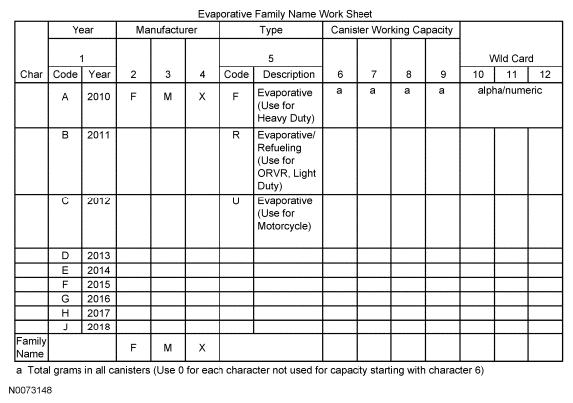

Fig 3: Evaporative Family Name Work Sheet
G06288650Courtesy of FORD MOTOR CO.
