Parking Aid Speaker: Removal

  1. 1.

    Remove the 2 bolts and remove the steering column cover trim panel.

    1. 1.

      To install, tighten to 3 Nm (27 lb-in).

    1. 2.

      Pull outward to release the retainers.
GFD33950Courtesy of FORD MOTOR COMPANY

  1. 2.

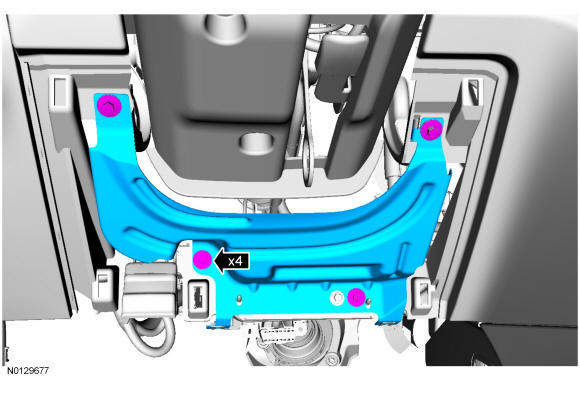

    Remove the 4 bolts and remove steering column cover assembly.

    1. 1.

      To install, tighten to 5 Nm (44 lb-in).
GFD37647Courtesy of FORD MOTOR COMPANY

  1. 3.

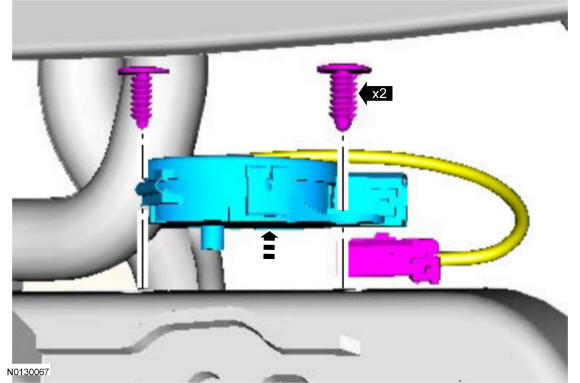

    Remove the 2 bolts, disconnect the electrical connector and remove the parking aid speaker.
GFD38141Courtesy of FORD MOTOR COMPANY
