Video Camera: Removal

1.

Remove the liftgate trim panel. REFER to Interior Trim and Ornamentation .

NOTE: LH side shown, RH side similar.

2.

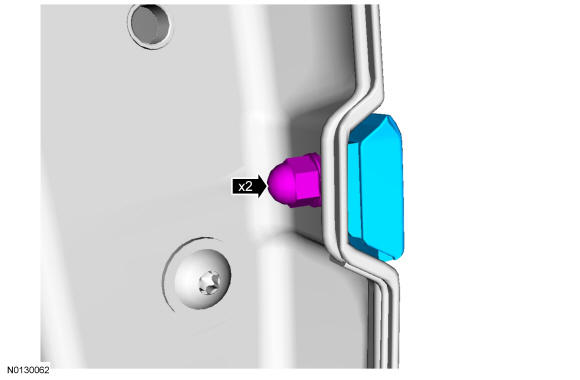

Open the rear liftgate and remove the LH and RH liftgate body moulding nuts.
1. 1.

  To install, tighten to 3 Nm (27 lb-in).

GFD38143

Courtesy of FORD MOTOR COMPANY

3.

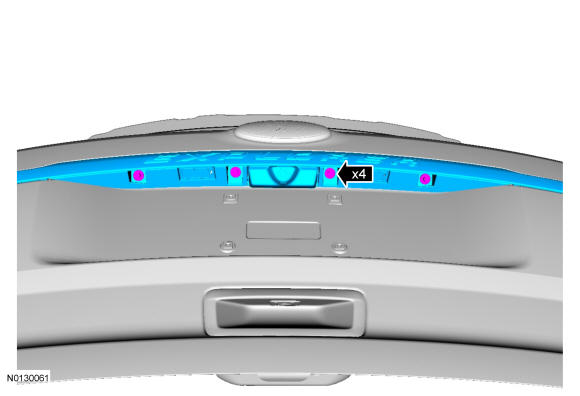

Remove the 4 liftgate body moulding bolts and remove the liftgate body moulding.
1. 1.

  To install, tighten to 3 Nm (27 lb-in).
1. 2.

  Disconnect the electrical connector.

GFD38144

Courtesy of FORD MOTOR COMPANY

4.

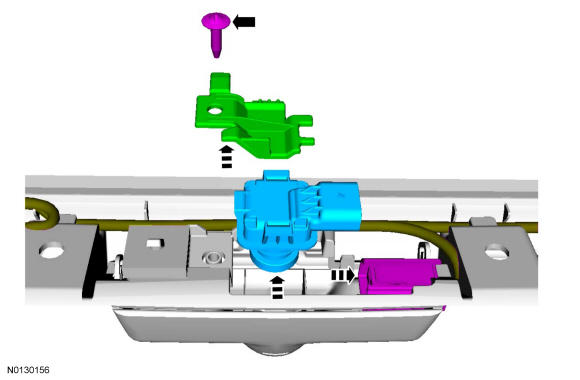

Remove the rear video camera screw and retainer, remove the rear video camera.
1. 1.

  Disconnect the electrical connector.

GFD38145

Courtesy of FORD MOTOR COMPANY
