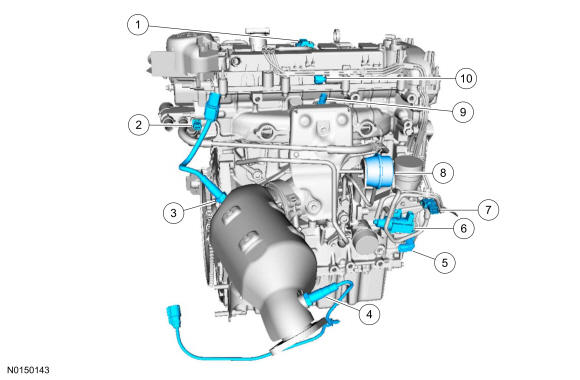

2.0L GTDI Engine Sensor Locations - RH

GFD38069Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 9K378 Turbocharger bypass valve solenoid
2 12A648 ECT sensor
3 9F472 HO2S
4 9G444 CMS
5 6C315 CKP sensor
6 9E882 Turbocharger wastegate regulating valve solenoid
7 9F479 Wastegate vacuum sensor
8 - Wastegate actuator
9 6K004 CHT sensor
10 030851 Filter and cover
