Camshaft Position (CMP) Sensor - 2.0L GTDI: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the ACL outlet pipe. REFER to Intake Air Distribution and Filtering .

• 2.

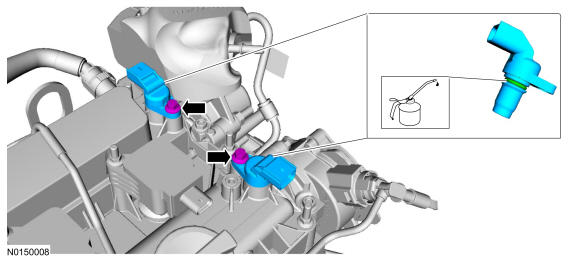

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: Lubricate the O-ring seal with clean engine oil prior to installing the CMP sensor.
  • To install, tighten to 6 Nm (53 lb-in).

Courtesy of FORD MOTOR COMPANY
