Camshaft Position (CMP) Sensor - 3.5L GTDI: Removal

Both sensors

• 1.

  Remove the ACL outlet pipe. REFER to Intake Air Distribution and Filtering .

RH sensor

• 2.

  Position the RH turbocharger intake tube aside.
  • Loosen the clamp, remove the nut from the RH valve cover stud bolt and position aside the RH turbocharger intake tube.

Courtesy of FORD MOTOR COMPANY

LH sensor

• 3.

  Position the LH turbocharger intake tube aside. REFER to Intake Air Distribution and Filtering .
  • Disconnect the vacuum hose from the top of the LH turbocharger Intake tube.

Both sensors

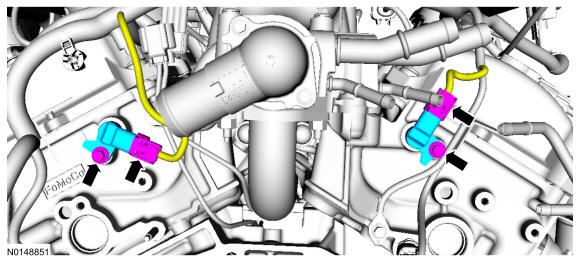

• 4.



Courtesy of FORD MOTOR COMPANY
